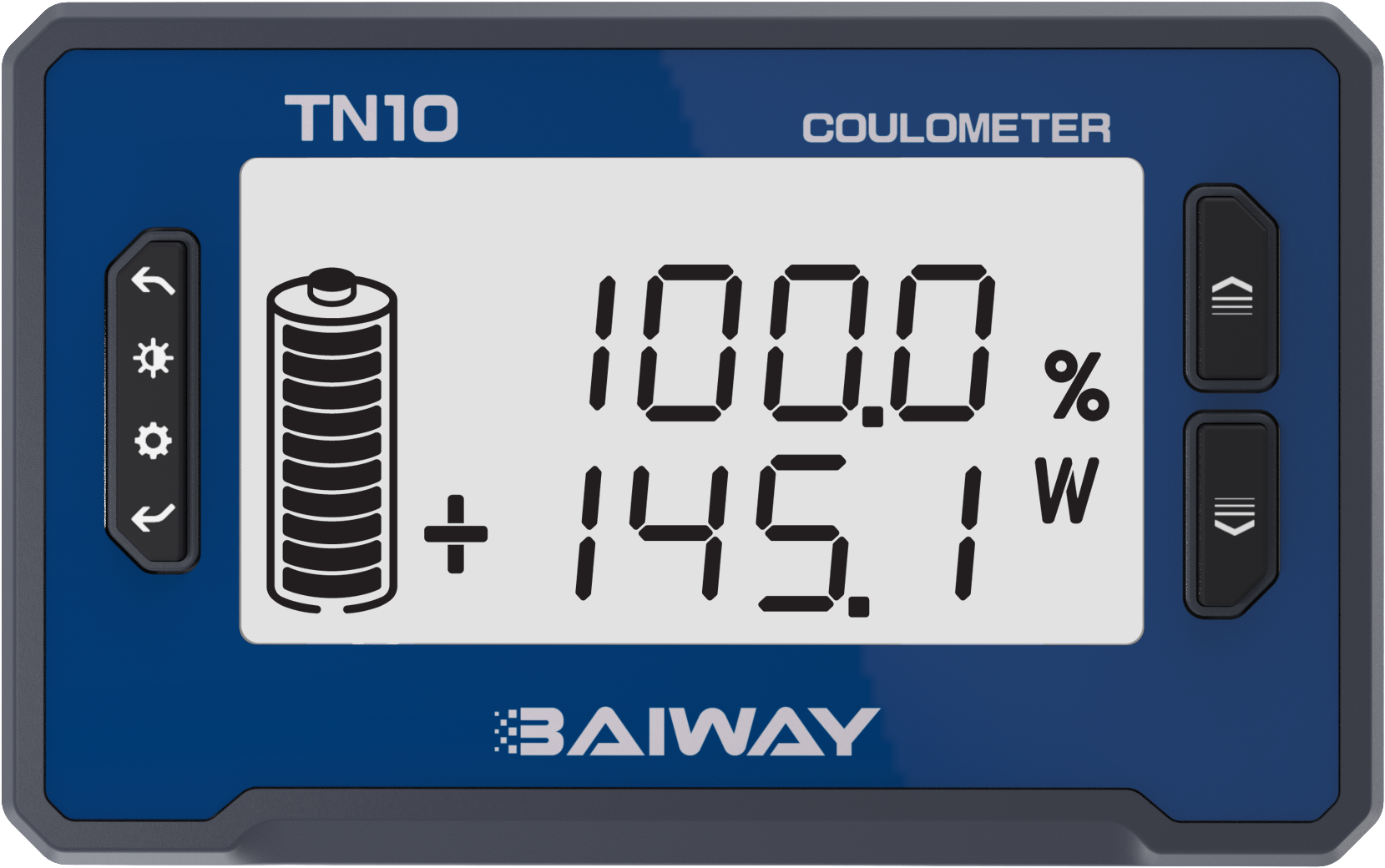

The TN10 can simultaneously display two key parameters and a dynamic battery level indicator on the same screen. Users can easily switch display content via panel buttons and customize backlight brightness to meet visibility needs in various environments. With its compact structure and intuitive interaction, it is suitable for a wide range of mobile devices or energy storage systems requiring real-time monitoring of battery capacity, voltage, current, etc.
The TN10 offers high compatibility with electrical equipment, supporting voltage measurement from 8-80V and current measurement ranging from 0-150A, adaptable to various common battery types and application scenarios. Paired with a high-precision sampling circuit, it accurately displays battery data in real time, helping users fully grasp battery operating status and manage energy effectively. Ideal for small/medium-sized energy storage batteries, battery-powered industrial equipment, and diverse applications.
The TN10 excels in power control, with operating current not exceeding 15mA during normal operation and 0.7mA in standby mode, significantly reducing impact on overall system energy consumption. The ultra-low power design not only extends usage time in battery-powered scenarios but also minimizes drain on the measured system, making it particularly suitable for applications with strict endurance requirements or long-term monitoring.
The TN10 features an integrated design with a built-in shunt, greatly saving installation space and facilitating deployment in structurally compact equipment. Additionally, we offer custom face label services, allowing adjustments to appearance colors and addition of company logos to better align with overall product branding and usage scenarios, enhancing product coherence and professionalism.
| Parameter | Min. | Nominal | Max. | Unit |
|---|---|---|---|---|
| Working voltage | 8.0 | 80.0 | V | |
| Working consumption (Backlight 50%) | 8.0 | 10.0 | mA | |
| Working consumption (Backlight 100%) | 12.0 | 15.0 | mA | |
|
Sleep consumption (Backlight 0%)
|
0.3
|
0.7 | mA | |
| Accuracy of collecting voltage | ±1.0 | % | ||
| Accuracy of collecting current | ±1.0 | % | ||
| Accuracy of collecting capacity | ±1.0 | % | ||
| Capacity detection range | 0.1 | 9999.0 | Ah | |
| Ambient temperature range | -10.0 | 25.0 | 50.0 | ℃ |
| Dimensions | 80.3*50.3*28.8 | mm |
Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.
It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.
We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.
